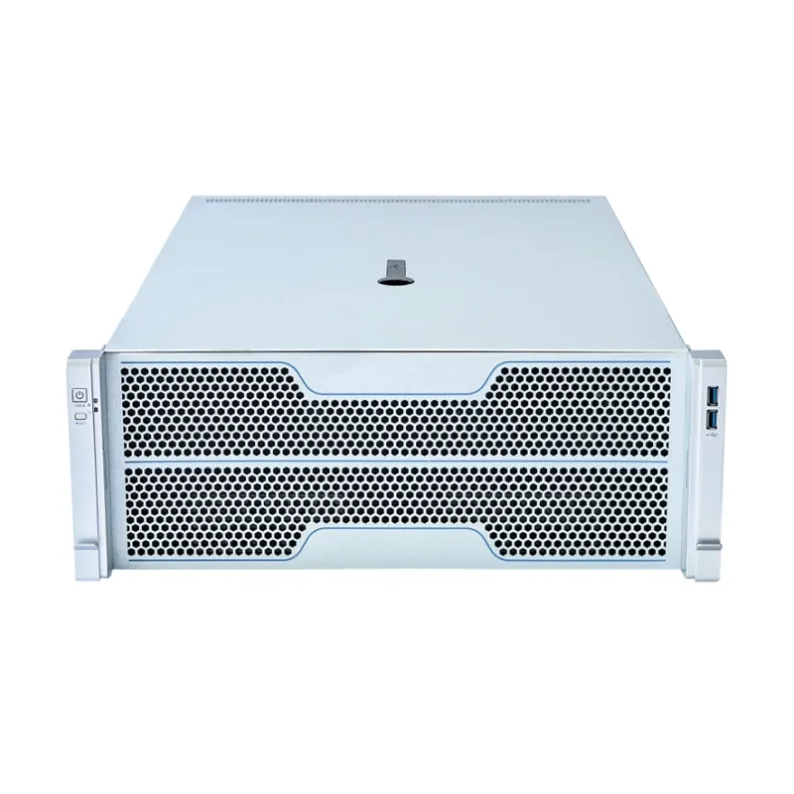

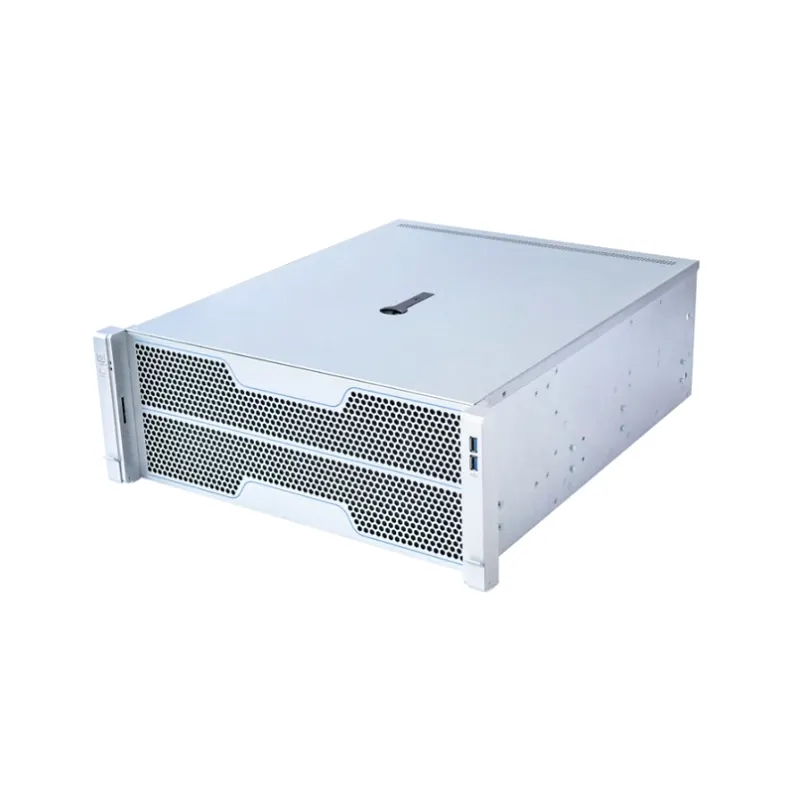

4U GPU Chassis
OCG4U530A-L
Versatile 4U rack-mounted GPU server chassis engineered for AI computing, deep learning, and high-performance computing, supporting up to 4 full-length GPUs.
Technical Specifications
- Chassis Style
- Rack-mounted
- Chassis Structure
- 4U Rackmount chassis, 4U GPU server chassis
- Chassis Size
- L530 × W435 × H177mm (482mm with mounting ears)
- Main Material
- SGCC 1.0mm (galvanized steel plate)
- Panel Interface
- 1 power switch, 1 restart switch, network indicator light, system fault light, 2 × USB 3.0

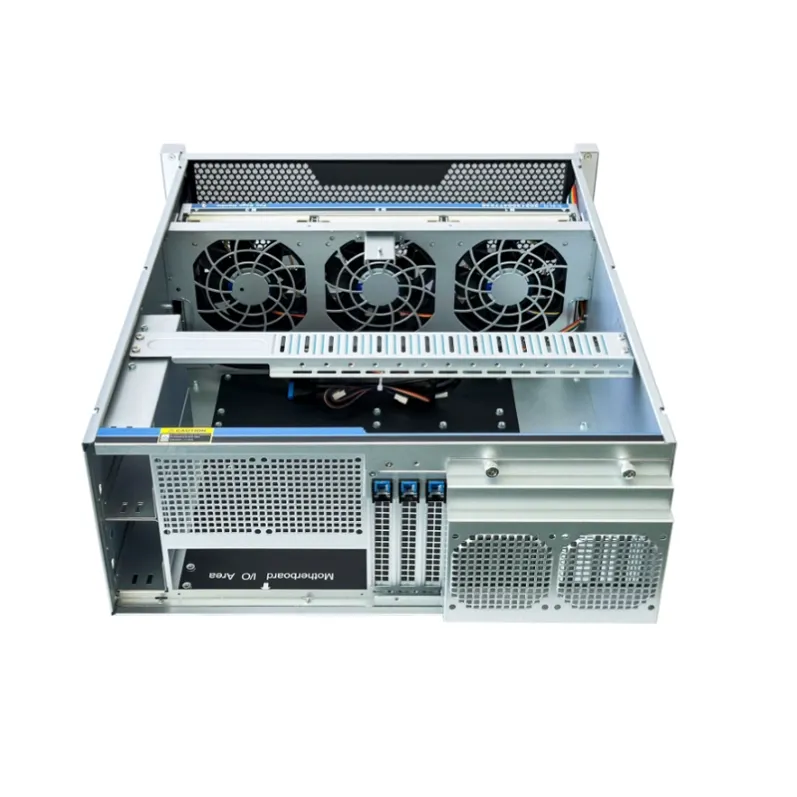

- Cooling System
- Standard 3 × 12038 air chambers, 2 × 8038 fans

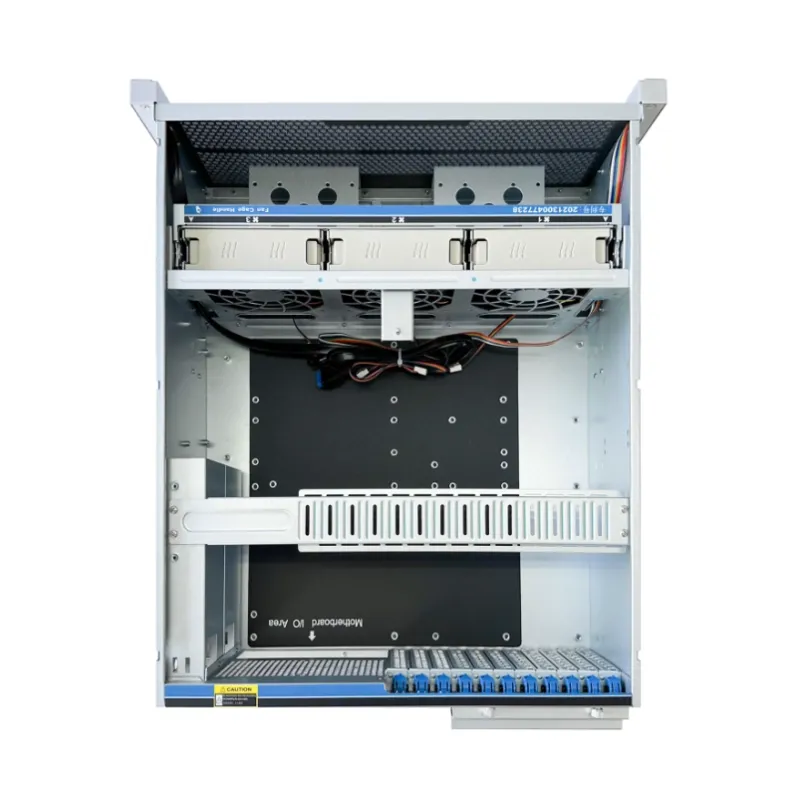

- Motherboard Position
- 15″ × 13″ / EATX (12″ × 13″) / CEB (12″ × 10.5″) / ATX (12″ × 9.6″) / Micro-ATX (9.6″ × 9.6″)
- Power Position
- 1+1 redundant power supply
- Hard Disk Position
- 4 × 3.5″ HDD, 2 × 2.5″ HDD/SSD
- Expansion Slot
- 11 × full-height PCI/PCIe expansion slots
- Packing Method
- Chassis + PE bag + pearl cotton + accessory box + carton
- Package Size
- L660 × W540 × H270mm
- Overall Gross Weight
- 14 kg
The OCG4U530A-L is a powerful and versatile 4U rack-mounted GPU server chassis, engineered for AI computing, deep learning, and high-performance computing (HPC). With support for up to 4 full-length GPUs, a redundant power supply, and 11 PCIe expansion slots, this chassis provides exceptional scalability and stability for data centers, research institutions, and enterprise applications.
Why Choose the OCG4U530A-L Gpu Server Chassis?
✅ Supports up to 4 full-length GPUs for AI, HPC, and deep learning applications
✅ 11 PCIe expansion slots for flexible system configurations
✅ Advanced cooling system to maintain optimal performance
✅ Redundant power supply for enterprise-level reliability
✅ Broad motherboard compatibility for versatile deployments
✅ Flexible storage options with support for HDDs and SSDs
The OCG4U530A-L is the ultimate 4U GPU server chassis for businesses and research institutions that need high-performance computing, scalability, and reliability. Whether for AI development, cloud computing, or big data analytics, this rack-mounted chassis is engineered to handle your most demanding workloads.Configuration Review
Final GPU, motherboard, PCIe, power, cooling, storage, dimensions, and accessory compatibility is confirmed for each project. Share the planned configuration with ONECHASSIS for technical review and quotation.
